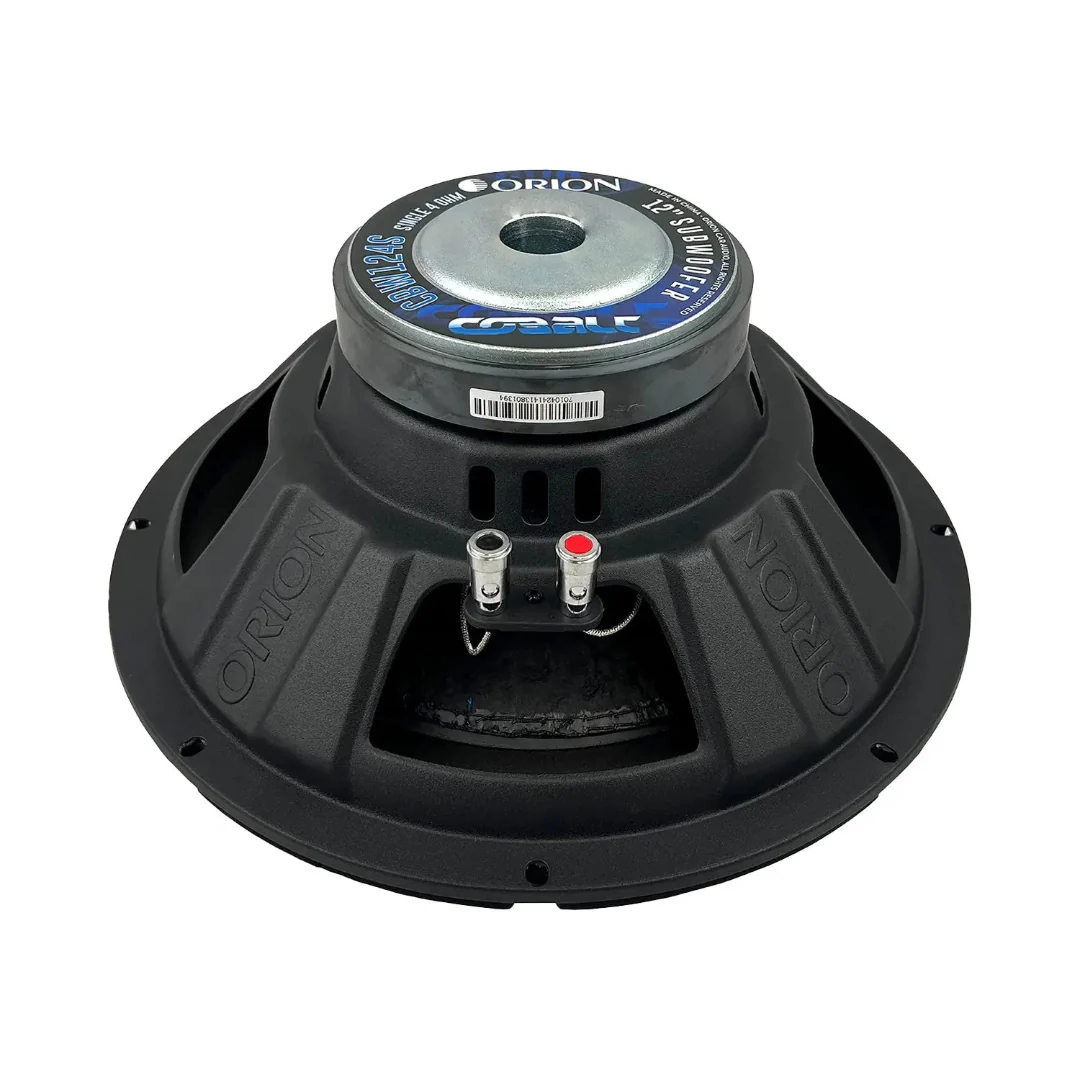

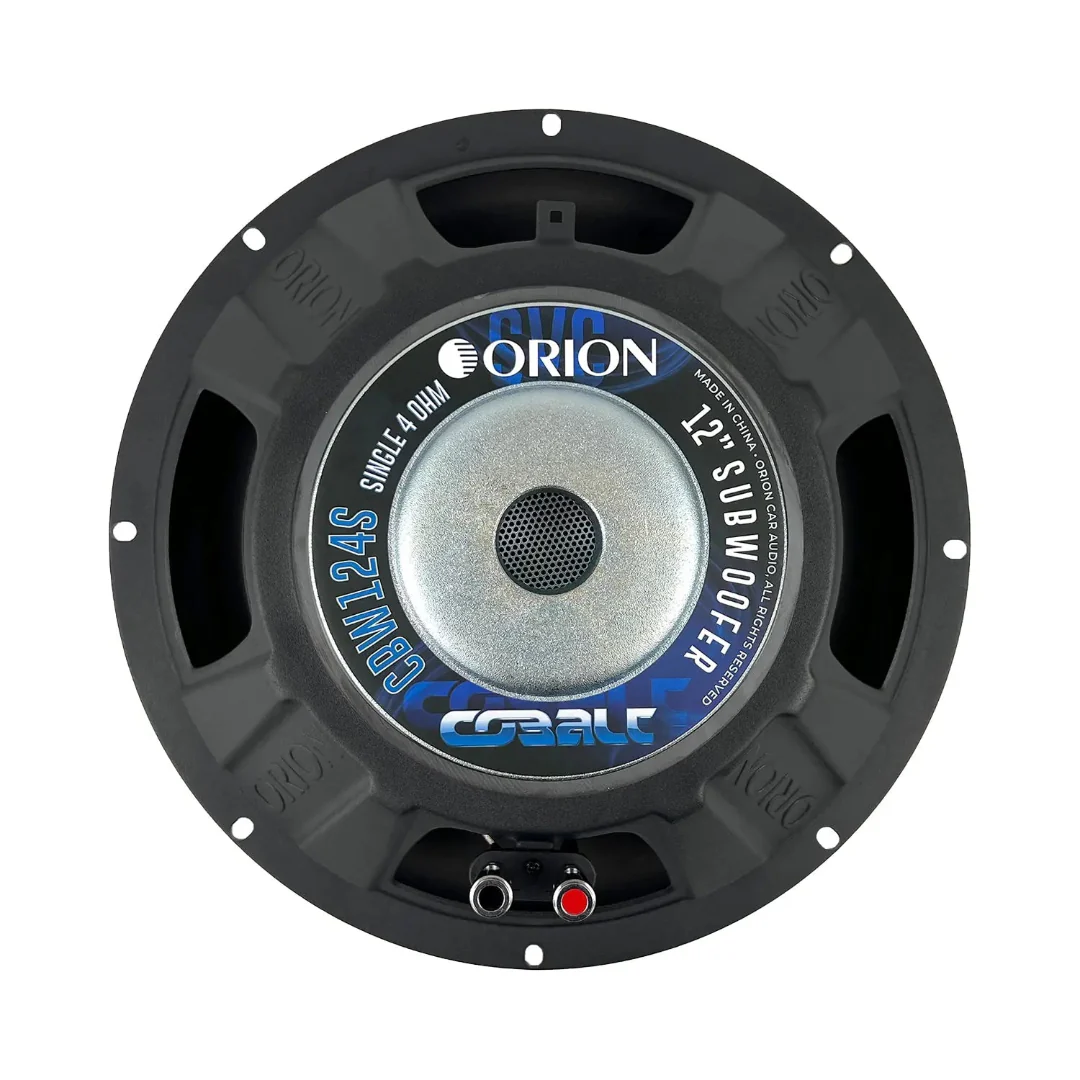

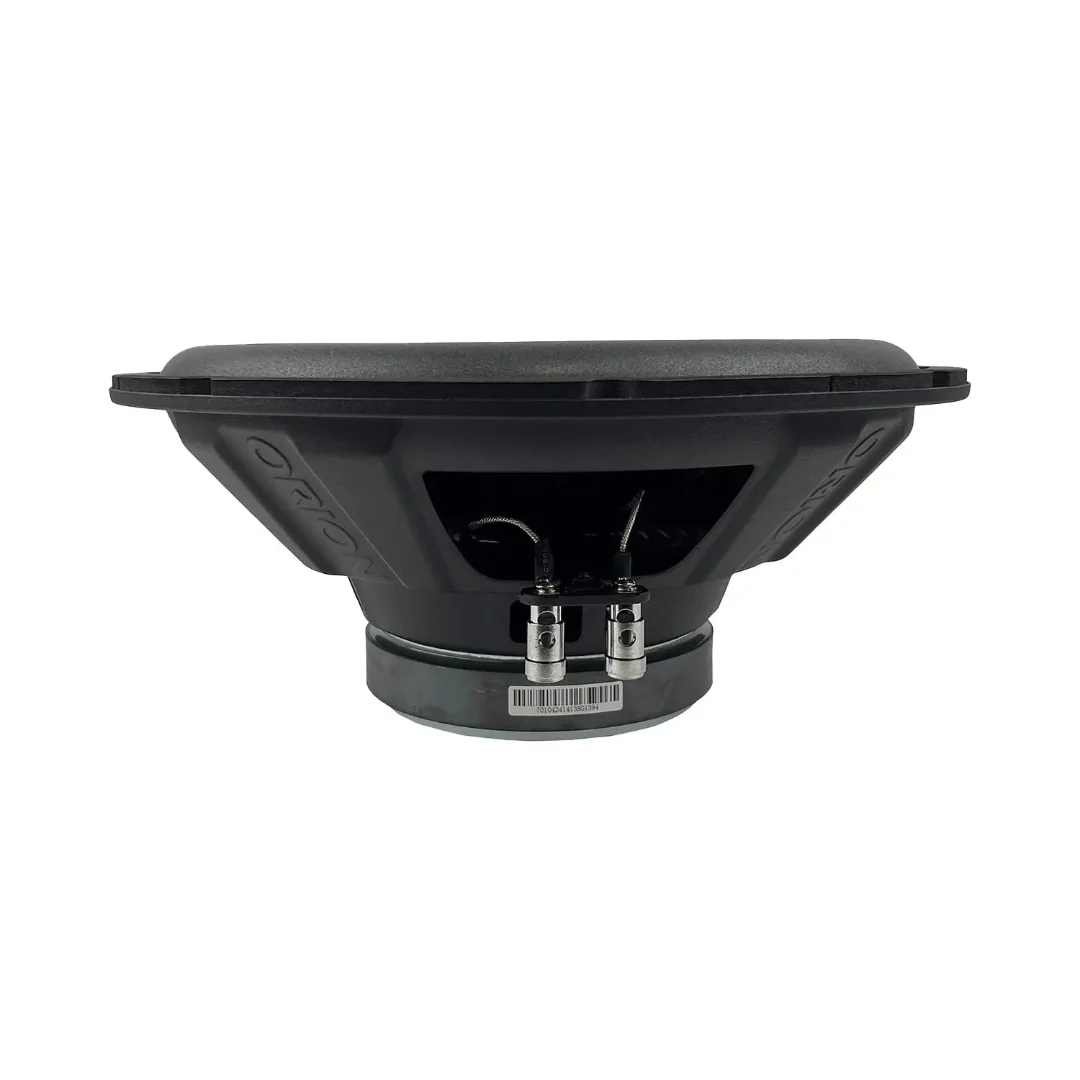

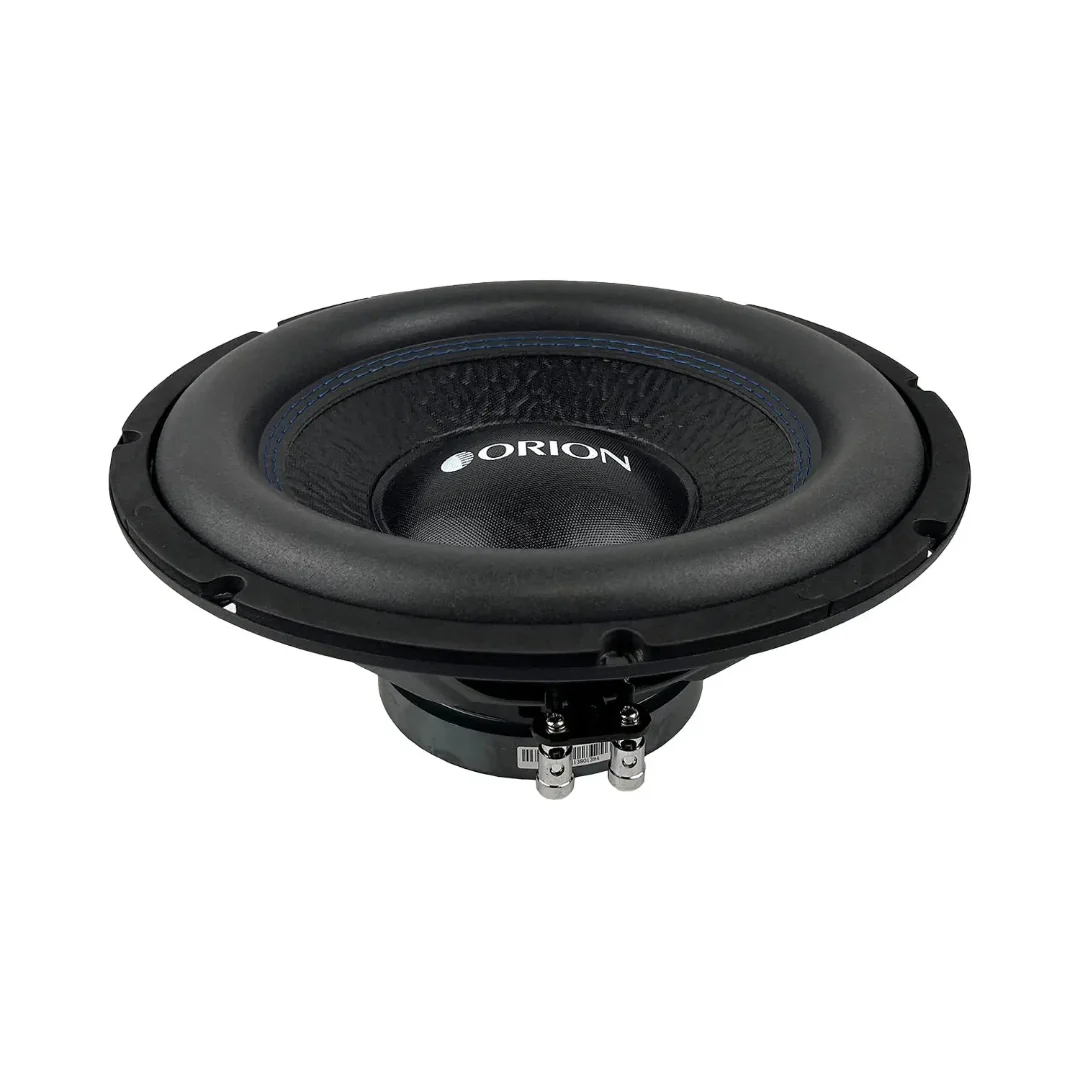

Orion CBW124S 12” Single Voice Coil 4 Ohm Subwoofer | 1600W Cobalt Series Bass

Powerful 12 Inch Subwoofer with Clean, Everyday Low-Frequency Performance

Upgrade your car audio system with the Orion CBW124S 12 inch single 4 ohm car subwoofer from the Cobalt Series. It is designed for strong, controlled, and reliable bass output. As a result, it delivers deeper low-frequency performance in an installation-friendly design. With 400W RMS and 1600W peak power, it offers an ideal balance of output, durability, and everyday value.

Built for consistent daily use, the CBW124S features a UV-coated paper and fiber blend cone. Additionally, it uses a durable foam surround. Together, these materials produce smooth and responsive bass. At the same time, they help resist heat, vibration, and long-term wear.

At its core, the subwoofer uses a 2-inch copper-clad aluminum voice coil wound on a rugged Kapton former. Therefore, heat dissipation is improved. This allows the subwoofer to maintain stable performance during extended listening sessions.

A 40 oz ferrite magnet motor structure provides solid control and efficiency. As a result, bass remains tight and accurate across a wide operating range from 20 Hz to 300 Hz.

With a 4.80-inch mounting depth, the CBW124S installs easily in both sealed and ported enclosures. Because of this, it works well in trunk builds and budget-focused upgrades. Whether you want deeper bass or a simple system upgrade, the CBW124S delivers dependable low-end performance backed by Orion Car Audio engineering.

Key Features

• 12 inch single 4 ohm car subwoofer
• 400W RMS / 1600W peak power handling
• UV-coated paper and fiber blend cone
• Durable foam surround for consistent bass response
• 2” copper-clad aluminum voice coil
• Kapton former for improved heat management
• 40 oz ferrite magnet motor structure
• 4.80” mounting depth
• Optimized for sealed and ported enclosures
